MT9V032: 1/3-Inch Wide-VGA Digital Image Sensor
General Description
General Description
The Micron Imaging MT9V032 is a 1/3-inch wide-VGA format CMOS active-pixel digital
image sensor with global shutter and high dynamic range (HDR) operation. The sensor
has specifically been designed to support the demanding interior and exterior unat-
tended surveillance imaging needs, which makes this part ideal for a wide variety of
imaging applications in real-world environments.
This wide-VGA CMOS image sensor features DigitalClarity ? Micron’s breakthrough
low-noise CMOS imaging technology that achieves CCD image quality (based on signal-
to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and
integration advantages of CMOS.
The active imaging pixel array is 752H x 480V. It incorporates sophisticated camera
functions on-chip—such as binning 2 x 2 and 4 x 4, to improve sensitivity when oper-
ating in smaller resolutions—as well as windowing, column and row mirroring. It is
programmable through a simple two-wire serial interface.
The MT9V032 can be operated in its default mode or be programmed for frame size,
exposure, gain setting, and other parameters. The default mode outputs a wide-VGA-
size image at 60 frames per second (fps).
An on-chip analog-to-digital converter (ADC) provides 10 bits per pixel. A 12-bit resolu-
tion companded for 10-bits for small signals can be alternatively enabled, allowing more
accurate digitization for darker areas in the image.
In addition to a traditional, parallel logic output the MT9V032 also features a serial low-
voltage differential signaling (LVDS) output. The sensor can be operated in a stereo-
camera mode, and the sensor, designated as a stereo-master, is able to merge the data
from itself and the stereo-slave sensor into one serial LVDS stream.

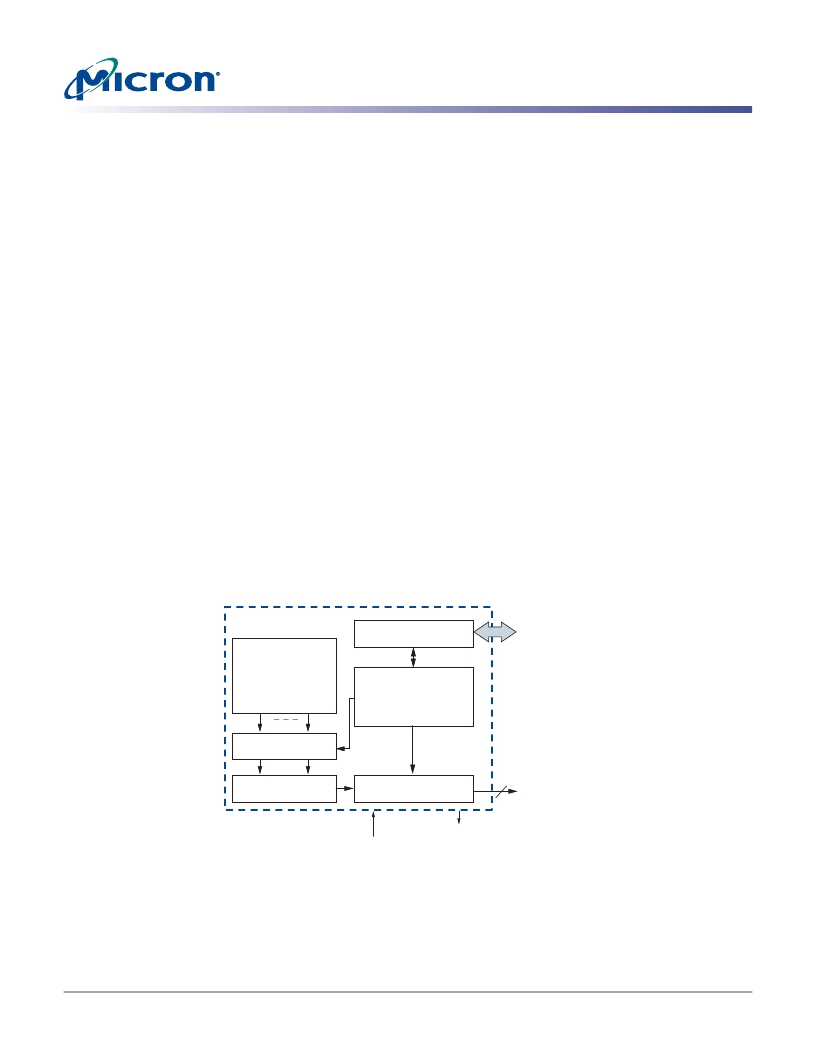

Figure 1:
Block Diagram
S erial
A c tive-Pixel
S ensor (AP S )
Array
752H x 480V
Analo g Pro c essin g
C ontrol Re g ister
Timin g an d C ontrol
Re g ister
I/O
AD C s
Di g ital Pro c essin g
Parallel
Vi d eo
Data Out
S erial Vi d eo
S lave Vi d eo LVD S In
(for stereo appli c ations only)
LVD S Out
PDF: 09005aef824c9998/Source: 09005aef824c999c
MT9V032_LDS_2.fm - Rev. B 3/07 EN
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
?2006 Micron Technology, Inc. All rights reserved.
